Control-Dependence

Idea

Intuitively, node $w$ is control-dependent on a node $u$ if $u$ determines whether $w$ is executed.

Example of Basic Control Dependence

https://www.cs.utexas.edu/~pingali/CS380C/2025/lectures/ssa/Dominators.pdf

In this case, we would say that S1 and S2 are control-dependent on e.

Example of Self Control Dependence

https://www.cs.utexas.edu/~pingali/CS380C/2025/lectures/ssa/Dominators.pdf

In this case, we would say:

• S1 is control-dependent on e.
• e is control dependent on START and itself

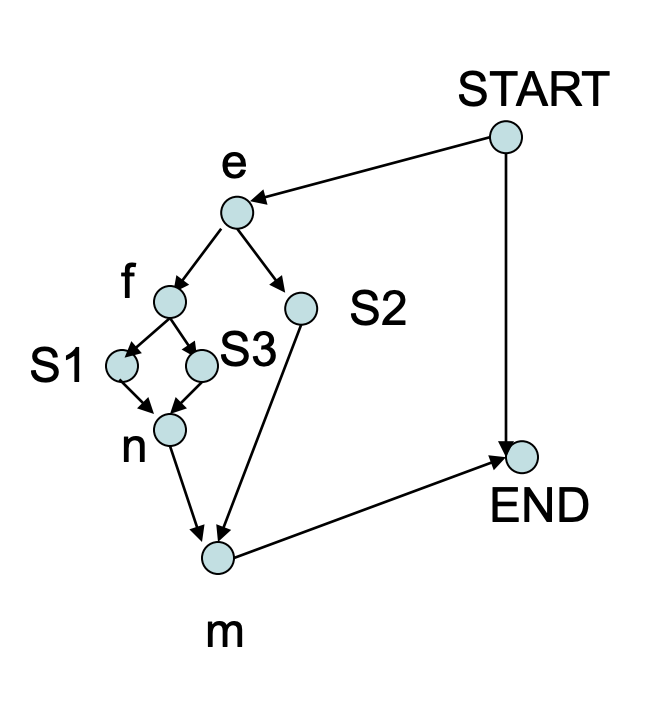

Example with Transitive Control Dependence

https://www.cs.utexas.edu/~pingali/CS380C/2025/lectures/ssa/Dominators.pdf

In this case, we would say:

• S1 and S3 are control-dependent on f
• They are transitively dependent on e, but e does not fully determine if S1 or S3 are executed, so S1 and S3 are not control-dependent on e
• However, we can say that f is control-dependent on e and S1 and S3 are transitively control-dependent on e

Definition

For $w$ to be control-dependent on edge $u\to v$, $w$ must postdominate $v$ for some CFG successor $v$ of $u$, $w$ can not be $u$, and $w$ can not $\text{pdom }u$.

Intuitively, if control flows from $u$ to $v$, it is guaranteed that $w$ will be executed. But from $u$ we can reach END without encountering $w$, so there is a decision being made at $u$ that determines whether or not $w$ is executed.

As a result, we can rewrite this to be:

• $w\text{ pdom }v$
• $w$ does not strictly postdominate $u$

Example

Using the example from before:

Example CFG

graph TD
    A[START] --> B(a)
    B --> C(b)
    C --> D(c)
    D --> E{d}
    D --> F{e}
    E --> G(f)
    F --> G
    G --> C
    B --> D
    G --> H(g)
    H --> I[END]
    A --> I

	Start	A	B	C	D	E	F	G	END
Start	x	x	x	x	x	x	x	x	x
A		x	x	x	x	x	x	x
B			x
C				x	x	x	x	x
D					x
E						x
F							x	x
G								x
END									x

Link to original

	A	B	C	D	E	F	G
Start→a	x		x			x	x
f→b		x	x			x
c→d				x
c→e					x
a→b		x

An x marks control dependence. This is not transitive control dependence.

Computing Control-Dependence Relation

Given a CFG $G$, a node $w$ is control-dependent on an edge $u\to v$ if:

• $w$ postdominates $v$
• $w$ does not strictly postdominate $u$

Nodes control dependent on edge $u\to v$ are nodes on the path up from the postdominator tree from $v$ to $\text{ipdom}(u)$ excluding $\text{ipdom}(u)$

• Written as $[v,\text{ipdom}(u))$
  • Half-open interval in tree

Overlay each edge $u\to v$ on pdom tree and determine nodes in interval $[v,\text{ipdom}(u))$. The time and space complexity is $O(EV)$.

However, in practice, we don’t want the full relation and only make queries:

• cd($e$): what are the nodes control-dependent on an edge $e$
• conds($w$): what are the edges that is $w$ is control-dependent on
• cdequiv($w$): what nodes have the same control-dependences as node $w$

It is possible to create a simple data structure that takes $O(E)$ time and space to build and that answers these queries in time proportional to the output of the query.
